|Supported CPU||– AMD AM4 Socket – Digi Power design – 9 Power Phase design – Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)|
|Chipset||– AMD Promontory B450|
|Memory||– Dual-Channel DDR4 Memory Technology – 4 x DDR4 DIMM Slots – AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory* – AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/2933/2667/2400/2133 non-ECC, un-buffered memory* – Max. the capacity of system memory: 64GB** – 15μ Gold Contact in DIMM Slots|
|Graphics||– Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU* – DirectX 12, Pixel Shader 5.0 – Shared memory default 2GB. Max Shared memory supports up to 16GB.** – Three graphics output options: D-Sub, HDMI and DisplayPort 1.2 – Supports Triple Monitor – Supports HDMI with max. resolution up to 4K x 2K (4096×2160) @ 24Hz / (3840×2160) @ 30Hz – Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) – Supports HDCP with HDMI and DisplayPort 1.2 Ports – Supports 4K Ultra HD (UHD) playback with HDMI and DisplayPort 1.2 Ports|
|Slots||AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) – 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)* AMD 7th A-Series APUs – 2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x2 mode)* AMD Ryzen series CPUs (Raven Ridge) – 2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4 mode) (If you use Athlon 2xxGE series APU, PCIE2 slot will run at x4 mode.)*|
|Supported Storage||– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug* – 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug* – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)** – 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**|
|LAN||– PCI-E x1 Gigabit LAN 10/100/1000 Mb/s – Realtek RTL8111H – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE|
|Audio||– 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)* – Premium Blu-ray Audio support – Supports Surge Protection – ELNA Audio Caps – PCB Isolate Shielding – Individual PCB Layers for R/L Audio Channel – Supports Creative Sound Blaster™ Cinema 5|

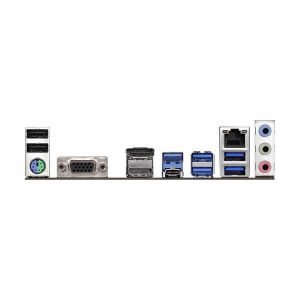

|Internal I/O Ports||– 1 x PS/2 Mouse/Keyboard Port – 1 x D-Sub Port – 1 x HDMI Port – 1 x DisplayPort 1.2 – 2 x USB 2.0 Ports (Supports ESD Protection)* – 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) – 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone|
|Form Factor||– ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm – Solid Capacitor design|
|BIOS||– 128Mb AMI UEFI Legal BIOS with multilingual GUI support – Supports “Plug and Play” – ACPI 5.1 compliance wake up events – Supports jumperfree – SMBIOS 2.3 support – DRAM Voltage multi-adjustment|
|Others||ASRock USB 3.1 Gen2 – ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) – ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy – Premium Power Choke – Matte Black PCB – High Density Glass Fabric PCB – 2oz Copper PCB ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen3 x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop|
|Warranty||03 years Warranty|

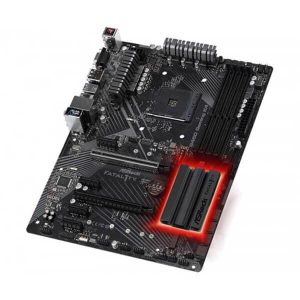

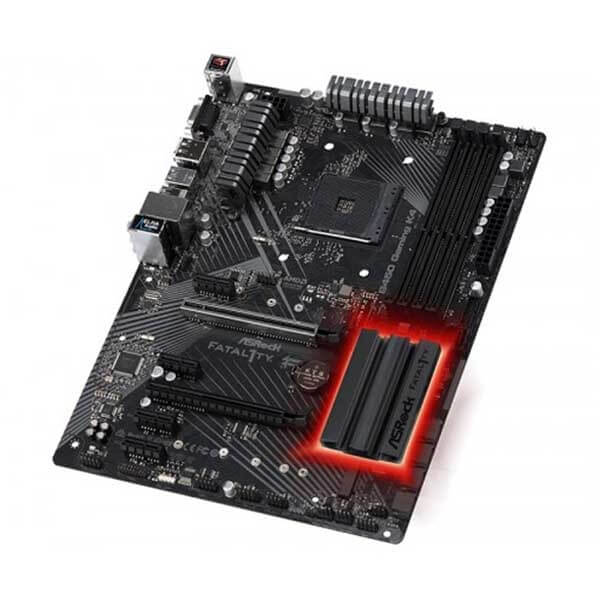

Fatal1ty B450 Gaming K4
●︎ AMD AM4 Socket
●︎ Supports DDR4 3200+ (OC)
●︎ 2 PCIe 3.0 x16, 4 PCIe 2.0 x1
●︎ AMD Quad CrossFireX™
●︎ Graphics Output: DisplayPort, HDMI, D-Sub
●︎ Supports Triple Monitor
●︎ 7.1 CH HD Audio (Realtek ALC892 Audio Codec), Supports Creative Sound Blaster™ Cinema 5
●︎ 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
●︎ 2 USB 3.1 Gen2 (Rear Type-A+C)
●︎ 6 USB 3.1 Gen1 (2 Front, 4 Rear)
●︎ Realtek Gigabit LAN
**03 years Warranty.
AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.
Dual M.2 For SSD
Equipped with an M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.
CREATIVE SOUND BLASTER™ CINEMA5
A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics, and punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.
Dual USB 3.1 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next-generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
